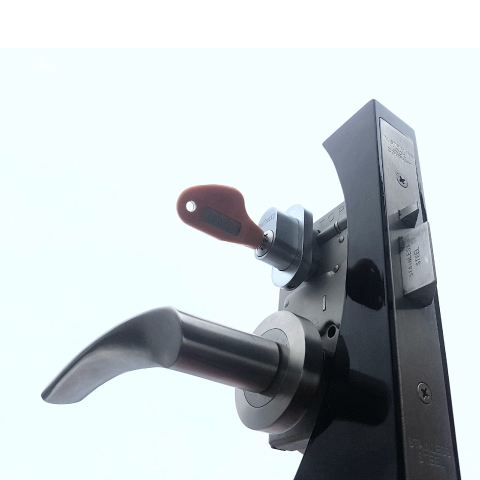

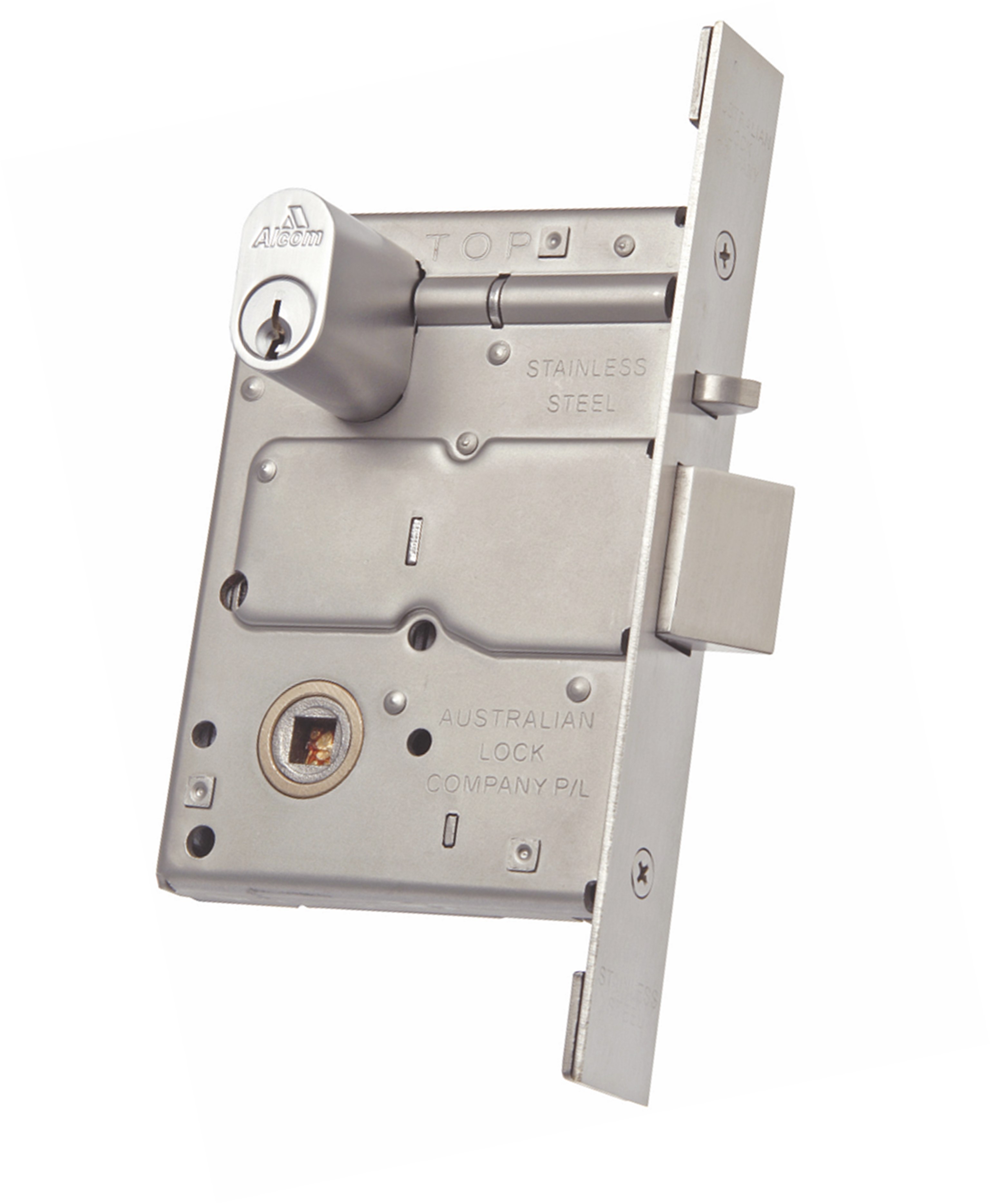

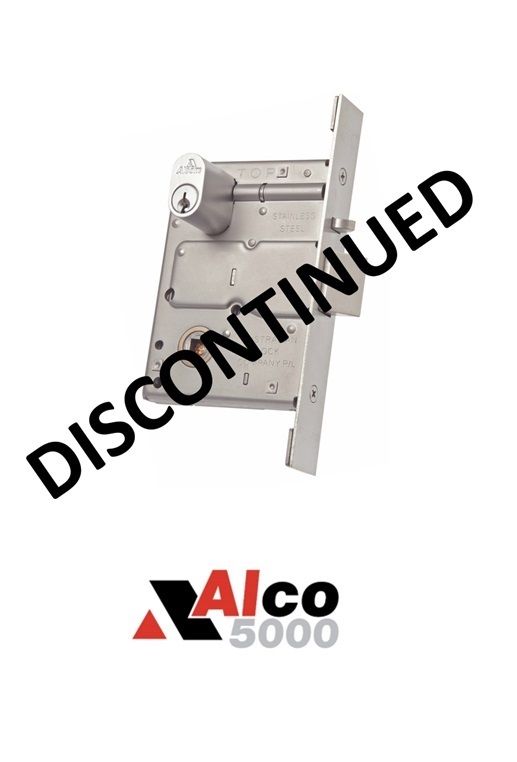

ALCO 5000 Mortice Locks

Our state-of-the-art ALCO 5000 Mortice Lock series is designed and engineered at Australian Lock Company (ALC). Ideally suited to any building where durability or security are considered a priority, our stainless-steel mortice locks offer a complete and extensive range of functions to meet individual or project specific requirements.

Endorsed by the Australian government’s official security advisor ‘Security Construction and Equipment Committee (SCEC)’, the ALCO 5000 Mortice Lock series has ‘Intruder Resistant’ and ‘Secure Area’ status – the highest rating given by the Australian government for security related products.

In addition, the ALCO 5000 Mortice Lock series has been successfully tested for endurance within fire door assemblies for up to 4 hours (in accordance with both Australian Standards AS1530.4 2005 for Pyropanel door sets & Australian Standards AS1530.4 2005 for E-core door sets); proving its suitability for use on all fire doors (as refereed to in AS1905, PART 1, Fire Resistant Door Sets).

Key Benefits

Flexibility to change the handing of the lock without removal of the lock case lid by simple rotation of the latch bolt for inwards or outwards opening & for left hand to right hand without case disassembly.

A multi-functional case allowing for easy conversion of a vestibule lock function to a combination lock function by simply turning the handing pieces on the side of the lock.

The lock base, cover & Australian universal strike plate made from 2mm 304 grade stainless steel.

Auxiliary dead latching bolt of sintered stainless steel.

Main latch bolt of 304 grade sintered stainless steel.

Main deadbolts & sliding door bolts of 304 grade sintered stainless steel.

All springs manufactured from 304 grade stainless steel.

A design to be used in conjunction with the Australian standard oval cylinder configuration & its standard fixing.

A standard backset of 60mm & extended 95mm & 127mm options.

A kick-off feature to all applicable lock type functions.

Holdback in most lock functions to allow the latch bolt to be held in retracted position.

Suitability for 33mm – 50mm doors as standard.

Rebate kits available to convert the standard mortice lock into a 13mm rebated door.

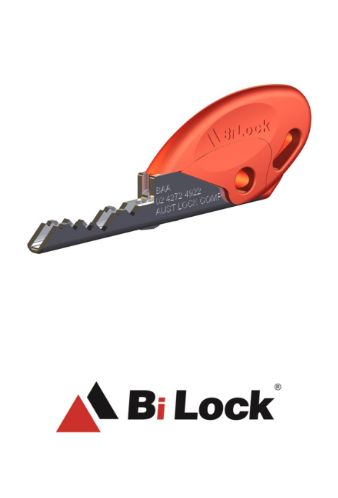

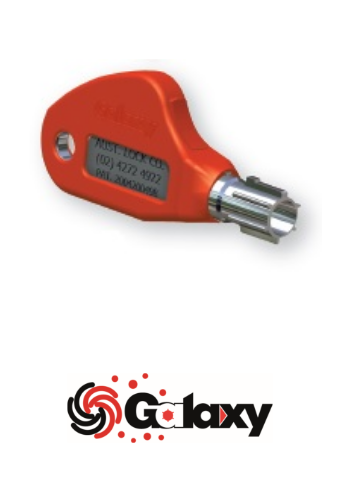

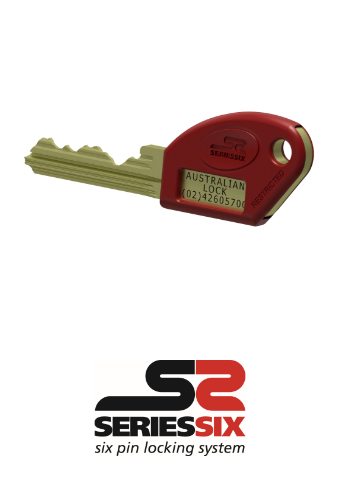

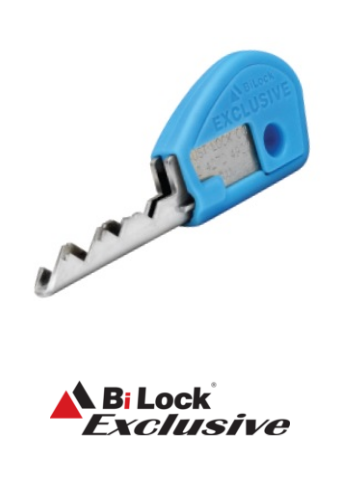

Suitability for Australian standard Oval Cylinders. This also includes ALC’s BiLock Exclusive, BiLock, Galaxy and Series Six Oval Cylinders.
